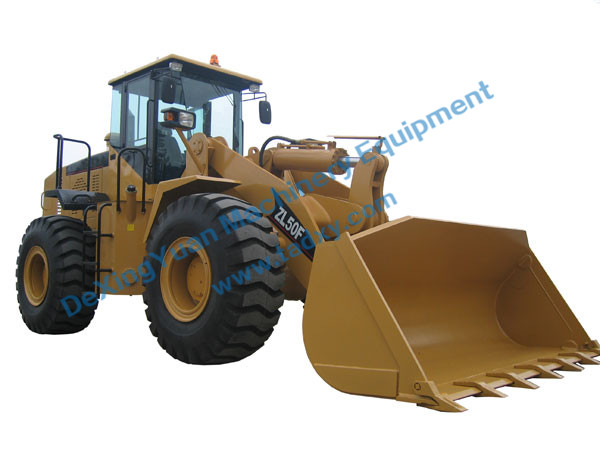

ZL50F  Techmical parameters

Description

Specifications

Unit

Buckdt capacity

3

m3

Rated load

5000

kg

Dumping clearance

3115*-3380

mm

Dumping reach

1240-1300

mm

Raising time

＜6

s

Total cycling time

＜12

s

Max.breakout force

156

KN

Max.breakout force

170

KN

Articulation angle

±40

o

Min.turn radius

7760

mm

Climb ability

28

o

Wheel base

3200

mm

Tread

2250

mm

Traveling speed

1 st（F/R）

8/8

km/h

2 nd（F/R）

15/15

km/h

3 rd（F）

23/23

km/h

4 th（F）

41/41

km/h

Engine

Model

WD615/C6121/6cta8.3

Ratedpower/Ratedspeed

162kw/2200r/min

L×W×H

8020*3070*3310

mm

Operating weight

16.2

t

Tires

23.5-25
