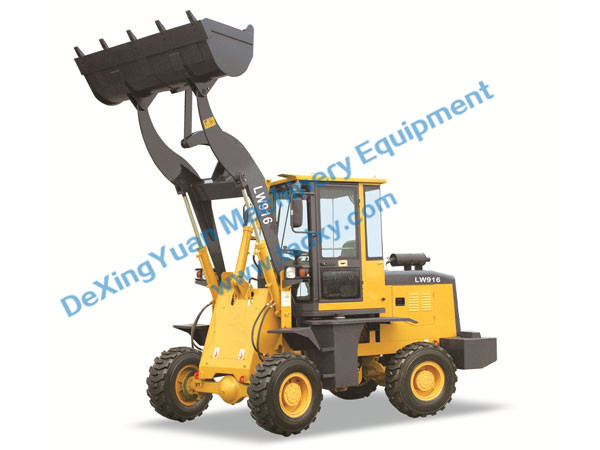

LW916 Wheel Loader
Description
■It adopts entire-hydraulic steering and its operation is flexible.
■Adopt three compents of torque converter and counter shaft power shift,the machine can achieve continuously variable transmission, flexible operation, and high efficiency.
■The working equipment has an automatic leveling function and high efficiency,which is able to lighten the driver’s operation intensity.
■Low-pressure and wide-base tires have been adopted to achieve excellent off-road function.
Specification
■It adopts entire-hydraulic steering and its operation is flexible.
■Adopt three compents of torque converter and counter shaft power shift,the machine can achieve continuously variable transmission, flexible operation, and high efficiency.
■The working equipment has an automatic leveling function and high efficiency,which is able to lighten the driver’s operation intensity.
■Low-pressure and wide-base tires have been adopted to achieve excellent off-road function.
Specification
Item | Parameter |
Bucket capacity (m3 ) | 0.7 |
Rated load (t) | 1.4 |
Weight (t) | 3.8 |
Lifting time of the arms (s) | ≤6 |
The sum of three items(s) | ≤10 |
Traveling speed (km/h) | 0-18 |
Forward gear I | 0-8 |
Forward gear II | 0-18 |
Reverse gear | I 0-8 II 0-18 |
Max. climbing gradient | 30o |
Overall length (mm) | 5200 |
Overall width(mm) | 1800 |
Overall height(mm) | 2750 |
Wheel base (mm) | 2150 |
Wheel tread(mm) | 1385 |
Max. dumping height(mm) | 2800/3200 |
Dumping reach (mm) | 860 |
Engine model | 490 |
Rated power(kw) | 33 |
Rated speed(r/min) | 2400 |
Tires Type | 12-16.5 |
